Power BI

Mawidabp exposes a Web endpoint so Power BI (or other BI tools) can consume findings and follow-up data and build their own dashboards. This guide describes how to obtain the credentials from Mawidabp and how to configure them in Power BI Desktop.

What data is exposed​

The current endpoint returns the list of findings (issues and opportunities) with their metadata:

  • Code, title, description.
  • Status, risk, priority.
  • Key dates (origin, commitment, closure).
  • Responsible auditors and auditees.
  • Associated review and project.
  • Tags.

Think of the endpoint as a tabular list: each row is a finding and each column a property. Power BI transforms it and relates it with other sources.

Prerequisites​

  • Power BI Desktop installed.
  • A Mawidabp user with a profile that enables viewing the findings token. The profile must have the corresponding privilege configured (see below).

Configure the profile to expose the token​

For a user to see the authorization token from Mawidabp, their profile must explicitly enable it:

  1. Administration → Security → Profiles and privileges.
  2. Edit the user's profile that will use Power BI.
  3. Enable the read privilege on the Follow-up module and access to the findings token.
  4. Save.

If you don't have access to the profile, ask the administrator to enable it.

Get URL and token from Mawidabp​

  1. Sign in to Mawidabp with the enabled user.
  2. Follow-up → Findings.
  3. Find the Link section (in the filters or the side panel, depending on the version).
  4. Copy:
    • The endpoint URL.
    • The authorization token.
caution

The token is sensitive: do not share it or commit it to repositories. If it is compromised, ask support to regenerate it.

Configure the connection in Power BI​

1. Open Power BI Desktop and add source​

  1. Home tab → Get data.
  2. Search for Web and select it.

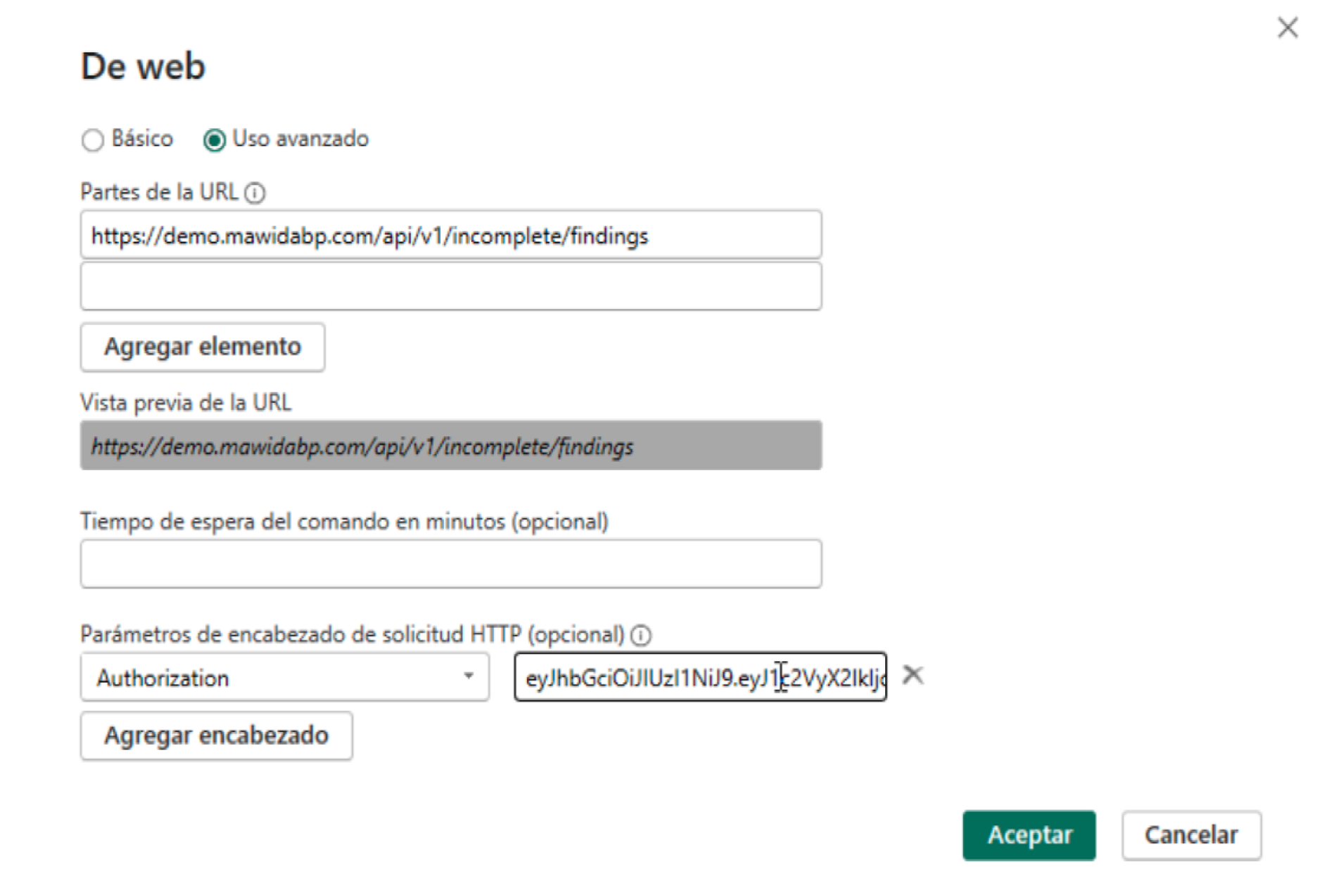

2. Configure the Web connection​

  1. In the configuration window, choose Advanced.
  2. URL: paste the URL you copied from Mawidabp.
  3. Add an HTTP header:
    • Header name: Authorization
    • Value: Bearer <token> (replacing <token> with the value you copied).
  4. OK.

Power BI loads the data. From here it is standard Power BI: apply transformations, create relationships with other sources, and build the visualizations.

Automatic refresh​

For the dataset to update periodically:

  • If the report is published in Power BI Service, configure Scheduled refresh with the header credentials stored.
  • Make sure the token does not expire; if it is regenerated, update it in Power BI Service too.

Useful report examples​

With the findings data you can build:

  • Pending dashboard by responsible — bars with the count of open issues per auditee.
  • Findings evolution over time — line with open findings per month, separated by status.
  • Risk heatmap — matrix of business unit × risk × count.
  • Deadline compliance — percentage of findings closed within the committed date, per unit.
  • Average time to resolution — average days between "Notify" and "Implemented/Audited".

Common problems​

"Could not connect to the server": verify the URL is reachable from the network where Power BI runs. If Mawidabp is on a private network, you may need a data Gateway.

"401 Unauthorized": the token is mistyped or expired. Regenerate it from Mawidabp.

"403 Forbidden": the user associated with the token does not have permission to view the Follow-up module or token access. Review the profile.

Missing columns you expected: the endpoint returns a defined subset of fields. If you need others, open a request with support.

Support​

For any questions, write to soporte@mawidabp.com.
