Microsoft Entra ID

This guide configures single sign-on (SSO) between Microsoft Entra ID and Mawidabp using SAML 2.0. Once it's running, users authenticate with their Microsoft corporate credentials and their Mawidabp profiles are derived from the groups assigned in Entra ID.

note

Microsoft renamed Azure AD to Microsoft Entra ID in 2023. Old Azure AD instructions still work, but this page describes the current configuration with the Entra ID UI.

Prerequisites​

  • Administrator account in the Microsoft Entra ID tenant.
  • Administrator account in Mawidabp with permission to edit organizations, profiles, and users.
  • Your organization's domain in Mawidabp of the form <organization>.mawidabp.com (for example, demo.mawidabp.com).

Part 1 — Configuration in Microsoft Entra ID​

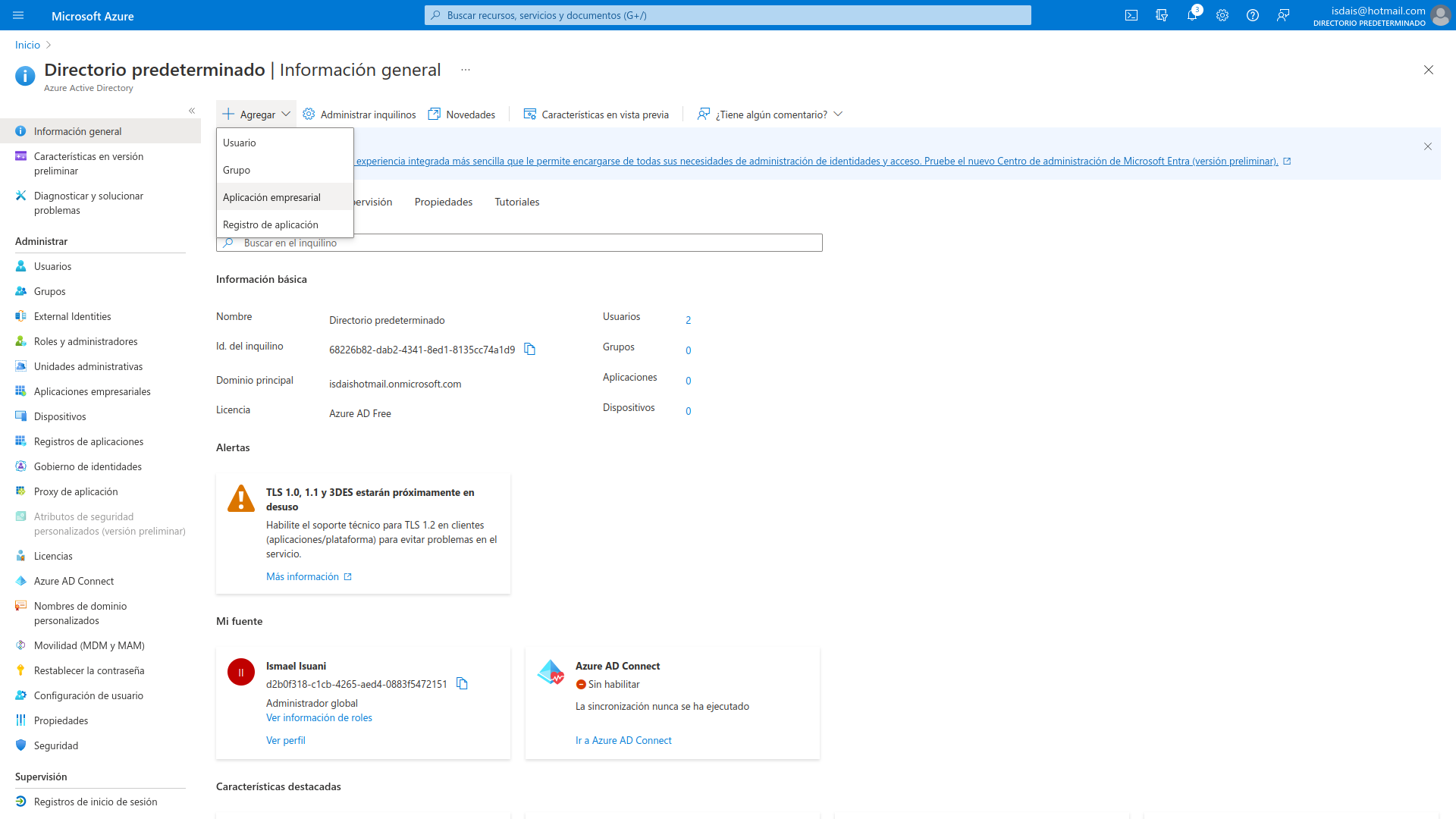

1. Create the enterprise application​

  1. Sign in to the Entra ID portal.
  2. Open the services menu and choose Microsoft Entra.

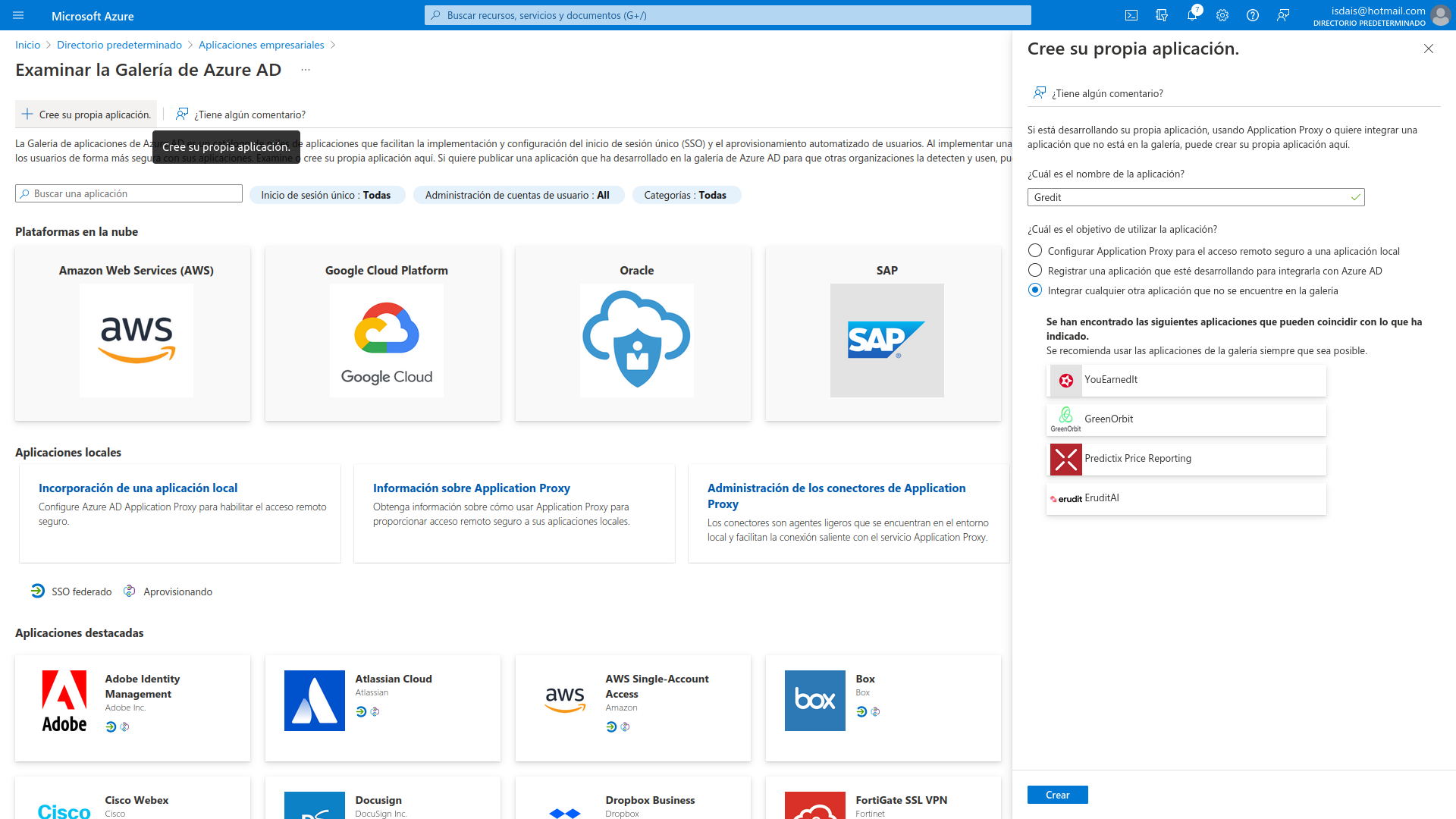

  3. Enterprise applications → New application → Create your own application.
  4. Fill in:
    • Name: for example, MawidaBP.
    • Choose Integrate any other application you don't find in the gallery.
  5. Create.

2. Configure SAML​

  1. Inside the application, go to Set up single sign on.

  2. Select SAML.

  3. In box 1 (Basic SAML Configuration), click Edit and fill in (replacing <organization> with your subdomain):

    • Identifier (Entity ID): https://<organization>.mawidabp.com/saml/metadata
    • Reply URL: https://<organization>.mawidabp.com/saml/callback

    For example, for an organization named demo:

    • Identifier: https://demo.mawidabp.com/saml/metadata
    • Reply URL: https://demo.mawidabp.com/saml/callback

  4. Save.

3. Configure attributes and claims​

  1. In box 2 (Attributes & Claims), Edit.
  2. Under Additional claims, add:
    http://schemas.microsoft.com/ws/2008/06/identity/claims/groups
  3. In the Group Claims panel that pops up, choose Groups assigned to the application and Save.

4. Download data for Mawidabp​

From the same SAML configuration screen, get:

  • Certificate (Base64).
  • Login URL.
  • App Federation Metadata URL.
  • Reply URL (Assertion Consumer Service URL).
  • Identifier (Entity ID).
  • Azure AD Identifier (still called this).
  • Logout URL.
  • Exact attribute names: first name, last name, email, username, groups, manager, position.

5. Assign users and groups​

  1. In Users and groups, add the users that will be allowed to use Mawidabp.

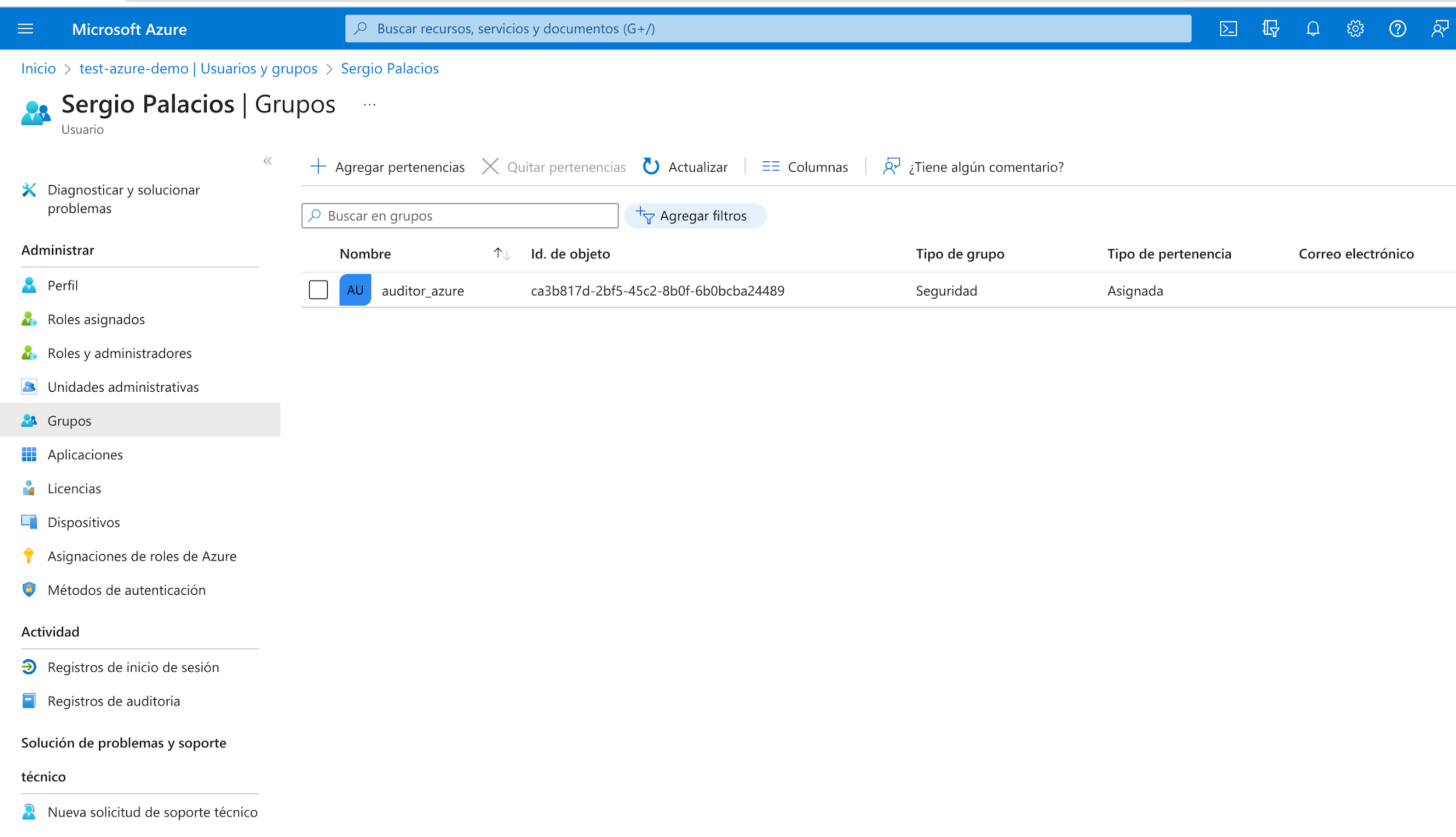

  2. For each group, note the Object ID (you'll need it when configuring profiles in Mawidabp).

Part 2 — User import (optional)​

For Mawidabp to sync users from Entra ID automatically, you also need an App registration:

1. Create the registration​

  1. Microsoft Entra → App registrations → New registration.
  2. Fill in:
    • Name: for example, Mawidabp Sync.
    • Supported account types: Accounts in this organizational directory only (single tenant).
  3. Register.

2. Grant API permissions​

  1. Inside the registration, go to API permissions → Add a permission.
  2. Microsoft Graph → Application permissions.
  3. Find and tick User.Read.All.
  4. Add permissions.
  5. Grant admin consent for the permission you just added.

3. Create the client secret​

  1. Certificates & secrets → New client secret.
  2. Fill in Description and Expires.
  3. Add.
  4. Copy the secret value immediately. After leaving the screen, it cannot be displayed again.

Part 3 — Configuration in Mawidabp​

1. Create profiles​

  1. Administration → Security → Profiles and privileges → New (or edit an existing one).
  2. Fill in:
    • Profile: descriptive name, for example MawidabpAIAuditor.
    • Profile type: auditor, supervisor, manager, etc.
    • Identifier: the Object ID of the Entra ID group you want to associate with this profile.
  3. Tick the privileges (read, modify, delete, approve) per module.
  4. Create profile.

Repeat for each Entra ID group that should map to a Mawidabp profile.

2. Edit the organization​

  1. Administration → Organization → Management → Edit.
  2. In the SAML configuration section, fill in:
    • Provider: Azure
    • Certificate: paste the downloaded Base64 certificate.
    • Login URL, App federation metadata URL, Reply URL, Identifier, Azure AD Identifier, Logout URL: the values from Part 1 step 4.
    • Attributes: first name, last name, email, username, groups, manager, position, exactly as they appear in Entra ID.
    • assertion consumer service binding:
      urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST
    • name identifier format:
      urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress
  3. Update organization.

3. User import (optional)​

If you completed Part 2:

  1. On the same organization screen, in User import, fill in:
    • Client ID of the App registration.
    • Client Secret (the value copied in Part 2 step 3).
    • Tenant ID.
  2. Update organization.
  3. Administration → Security → Users → Import from SAML to trigger the sync.

Test sign-in​

  1. Sign out of Mawidabp.
  2. Sign in with a user assigned to the corresponding Entra ID group.
  3. The sign-in should redirect to Microsoft, validate credentials, and come back to Mawidabp with the user signed in.

Common problems​

Sign-in redirects but fails with "Unauthorized user": verify the user is assigned to a group in Entra ID and that the group has a corresponding profile in Mawidabp with the right Object ID.

The importer brings an empty list: check that User.Read.All has admin consent and that the client secret has not expired.

The certificate does not match: make sure you downloaded the Base64 version, not Binary.

Support​

If something fails during configuration, write to soporte@mawidabp.com.
